Speed Production... Protect the weld and welders
Working closely with pipeline welding crews, Bell's Welders Tents have literally been built to the specifications set up by men in the field.

  • Safe for MIG and stick operations.
  • Fire-resistant, tearproof covers, supported by strong, lightweight tubular steel frame.
  • Plenty of light - windows are of clear tough plastic or screens of fiberglass.
  • Can use two ends for complete enclosure, with portable heaters in extreme cold.
  • Tents withstanding strong winds, fit to pipe up to 48-inch diameter.
  • Can use earth anchors for added stability.
  • Goes up or comes down in seconds, can be moved intact.
  • Replacement parts are available.

3 Sizes in Stock - Ready for immediate shipment

Bantam Model
Fits pipe 4-12 inches
Width ......................56 in.
Length ....................72 in.
Height .....................90 in.
Approx. Shipping Wt. - 100 lbs.		 Big Inch Model
Fits pipe up to 42 inches
Width ......................92 in.
Length ....................72 in.
Height .....................92 in.
Approx. Shipping Wt. - 115 lbs.		 Giant Model
Fits pipe up to 48 inches
Width ......................115 in.
Length ....................108 in.
Height .......................92 in.
Approx. Shipping Wt. - 184 lbs.

Options Available in all sizes of tents

Total Enclosure
with Entrance Zipper		 Boom Hook Lifting Eye
& Stabilizers		 Flat Wall
Utility Tent

Zipper Entrance


Special Designed Units

Flat Wall Utility
with Nose Cone

Zipper entrance on all four corners.

All sizes available.

 Arctic Model

6" Ground Flaps

Overlapping wind flaps above and
below the pipe.

All sizes available.

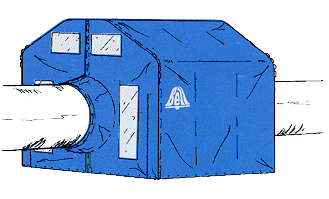

 Jumbo Model
Fits pipe up to 60 inches
Width ...150 in.    Width ...150 in.
Length ..108 in.     Length ..144 in.
Height ...125 in.    Height ...125 in.

Approx.                 Approx.
Weight ..295 lbs.   Weight ..370 lbs.
